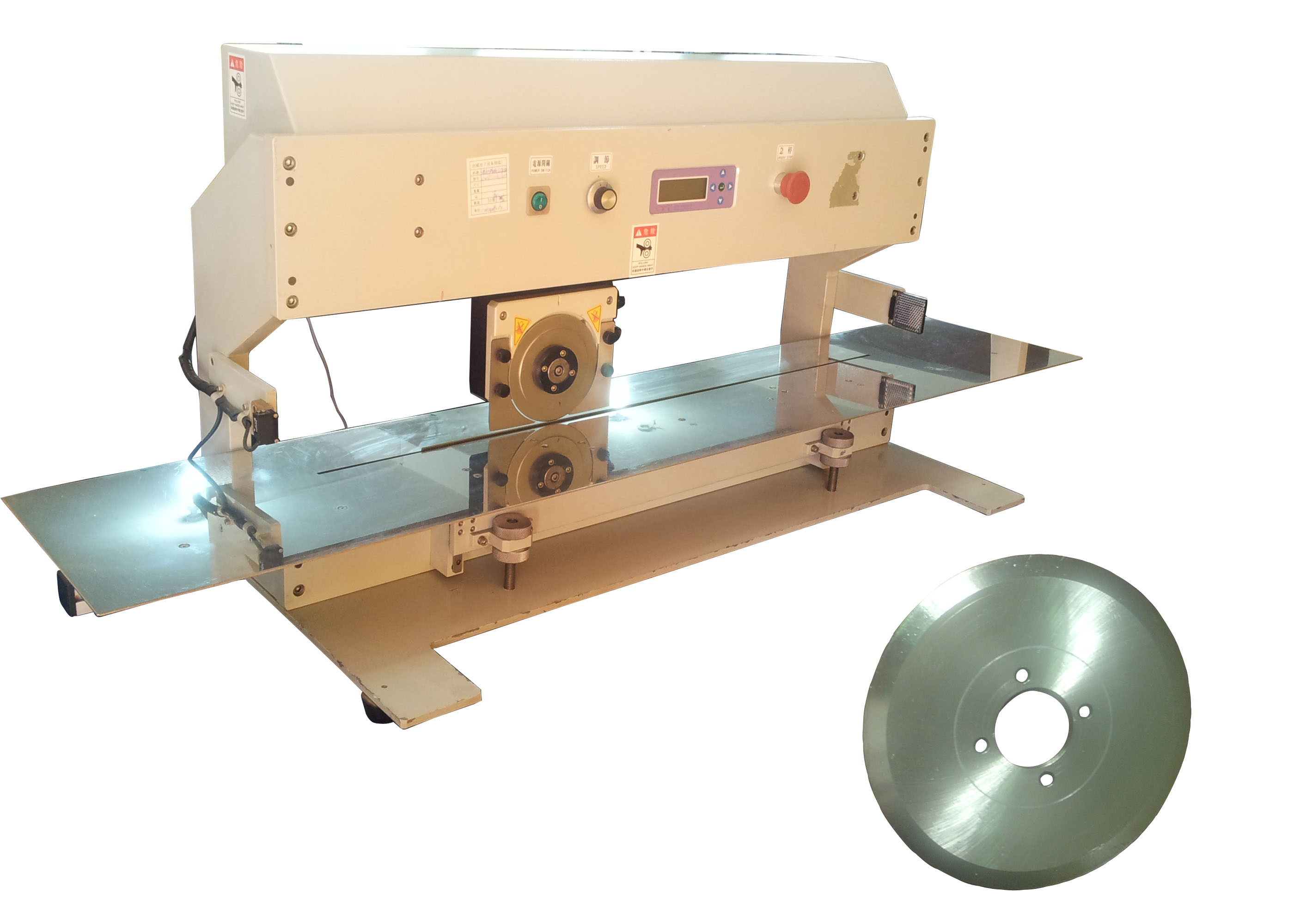

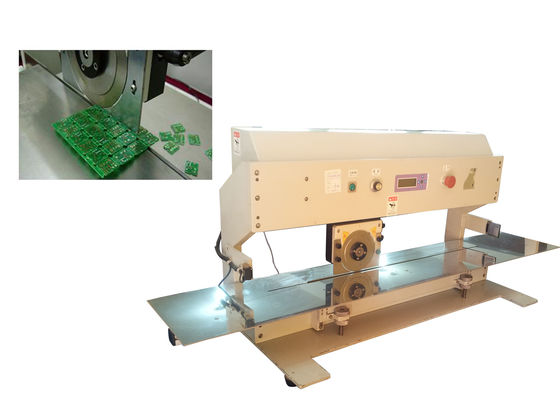

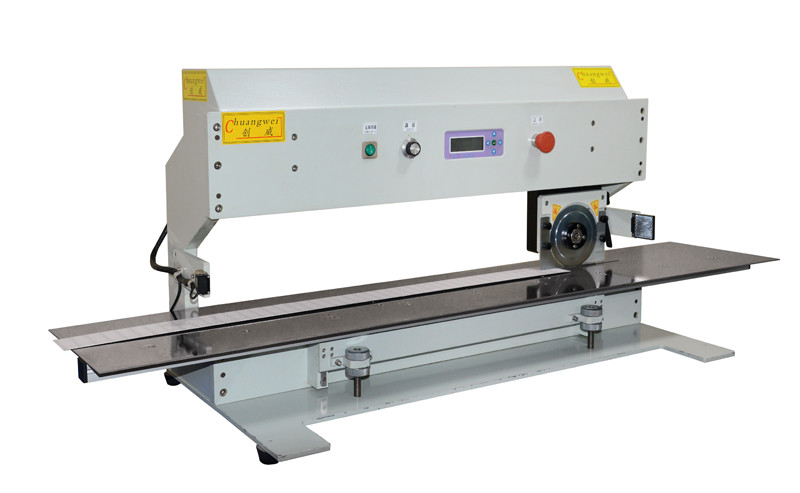

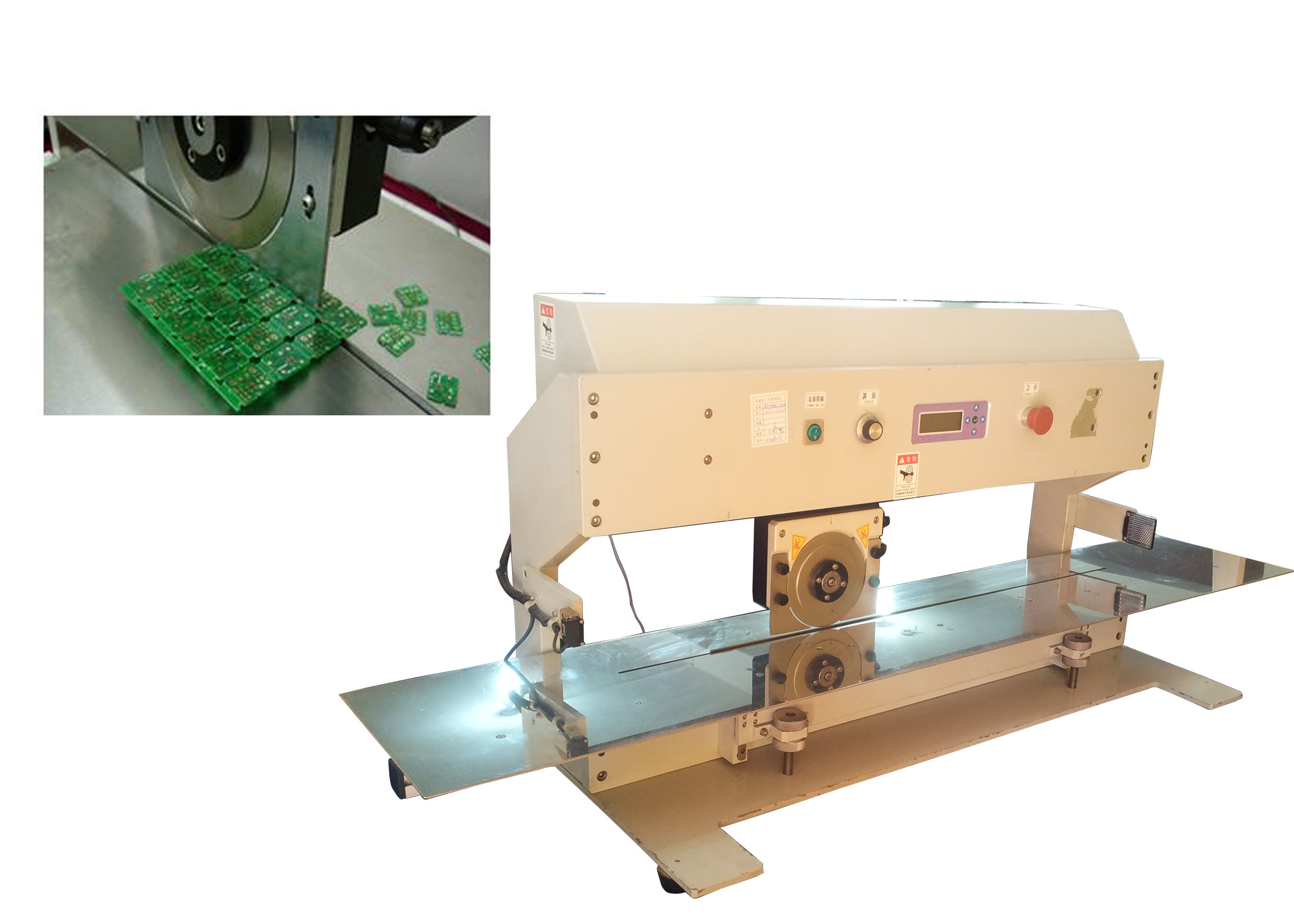

Circular Blade Moving Pcb Depaneling,Separate Pre-scored PCB Assembly Features
1. Separate pre-scored PCB assembly without stress on either PCB or component
2. One touch programming of cut length with digital display
3. Separating speed is adjusted by a rotary knob
4. Handle Intermittent scoring or cut-outs
5, Board with projected component can be cut precisely
6. Large stainless steel platform on both side of cutting blade prevents board wobble and table height and angle are adjustable
7. Optional PCB conveyor belt to remove finished board
8. Clearance between circular and linear blades are adjustable to fit different groove depth and compensates for blade wear out
Specifications:
|
Model : |
CWV - 1A600 |
|
Size : |
1080*860*660mm |
|
Machine Weight : |
120Kg |
|
Minimize thickness : |
0.6 - 3.5mm |
|
Minimize Speed : |
100 / 200 / 300 / 500mm / s |
|
The Longest Minimize : |
600mm |
Competitive Advantage
For example , your pcb is 200mm , then you could setup 200mm moving trip .
2. Sensor : it protect our hands from depanelizing.
When you put your hands near the blades , the machine stop working even though the operator step on pedal switch . It is very safe .
3. It has 4 speed positions to control cutting speed
4. We used Japanese High Speed Steel to make the blades, and baldes should be re-sharpened 2 - 3 times .
Application
