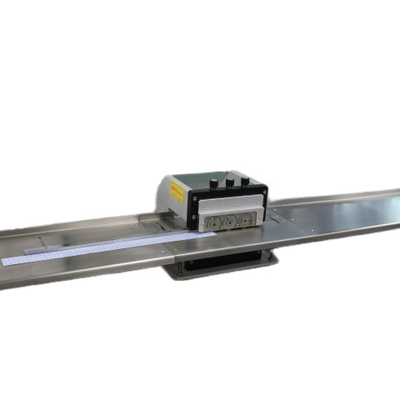

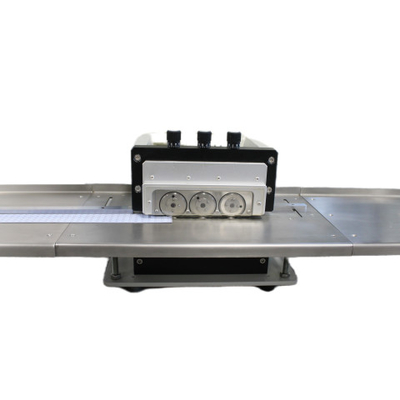

Electrostatic PCB Depanelizer Multi - blades Cutting 1500mm LengthSpecifications
1. V-cut PCB Electrostatic Separator
2. PCB 0.8 to 3.5mm
3. with long platform
4. PCB length unlimited
5. cut speed 0 to 400mm/s
|
Max PCB length |
unlimited |
|
PCB Thickness |
0.8 to 3.5 mm |
|
Working Speed0 |
0 to 400mm/s |
|
Voltage |
220VAC |
|
House color |
white |
|
Machine Weight |
40kg |
Features:

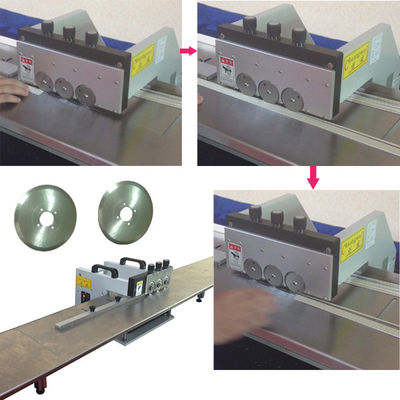

1. this machine applies unique multi sections cutting, the cutting is to be finished by 6 pieces round blade.
2. Working process is pretty smooth , due multi sections cutting
3. there won`t be any deviation when cutting along the v-cut slot , even the v-cut slot is shallow
4. the blade made by high speed steel imported from Sweden, which prolonged the life of the blade

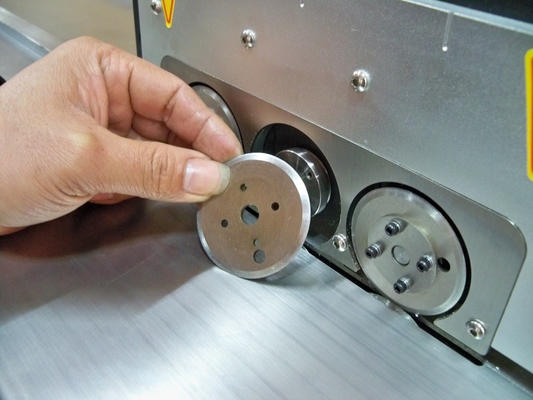

5. precise adjustment of up and down blade.
Pcb Separator Application:
1. Aluminum base board
2. Copper substrate
3. FR4
4. Glass fiber board
5. LED light bar panel
Pcb Separator Maintenance:
1. Take off the power botton and clean the machine after finish working
2. Be careful to protect the upper and lower blade
3. Move the blades and protect them with machine oil
4. Check the screw fastening time to time
