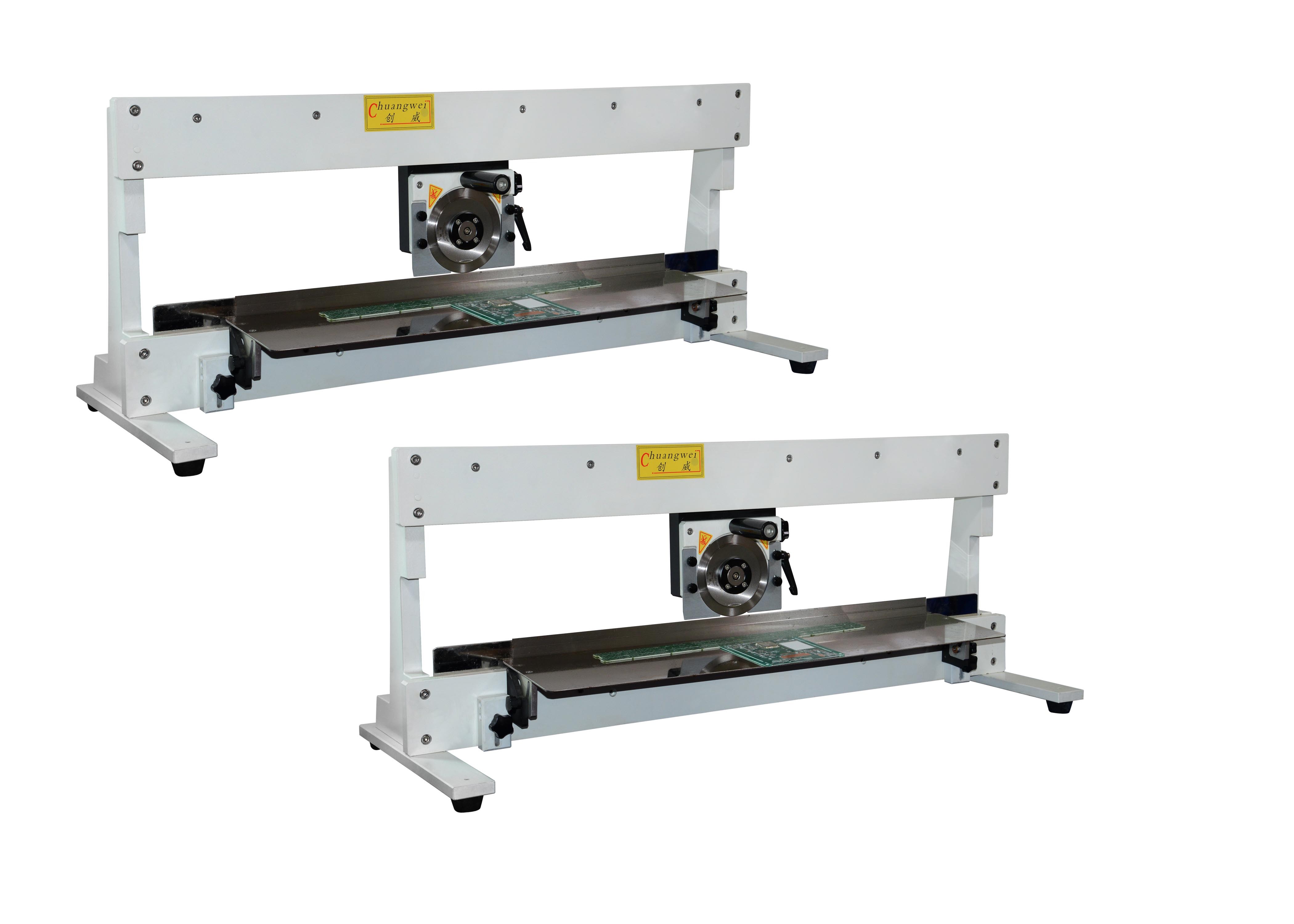

Manual V Cut Pcb Separate with Circular / Linear Blade for 720mm Length

[ Chuangwei Manual V-CUT PCB  depanelizer machine ]

1. The price is very economical
2. Easy maintanance and operation
3. Low bending stress,no vibration


 Chuangwei Manual V-CUT PCB   depanelizer machine specifications

[ Chuangwei Manual V-CUT PCB  depanelizer machine  descriptions: ]

1. Depanelization type:upper component side(circular blade),bottom solder side(linear blade).
2. Depanelization for small and large PCB with pre-scored V groove.

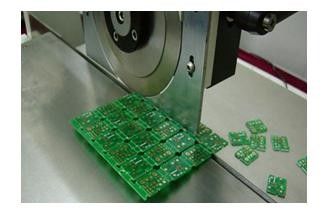

3. Depaneling pre-scored V groove PCB assembly without stress on either PCB or component.
4. Depaneling speed is controlled by hand and very easy operation.
5. Large stainless steel platform on both side of cutting blade prevents PCB shaking and the table height and angle
could be adjustable.

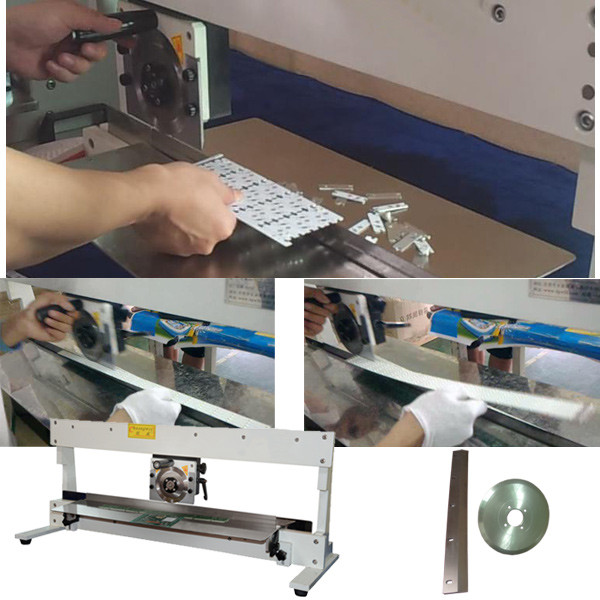

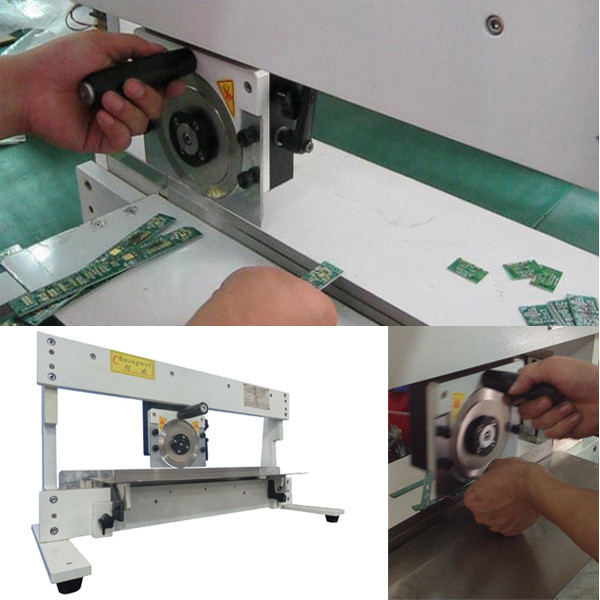

6. The PCB is placed with its pre-scored V groove onto the linear blade and the circular blade is then drawn by hand
across the PCB.
7. Clearance between circular and linear blades are adjustable to fit different groove depth and compensates for
blade wear out.It is to ensure that the PCB is only depaneled in the pre-scored V groove.


Munual V-CUT PCB   depanelizer machine  video please  see below:   (CWV-1M

http://www.youtube.com/watch?v=WRe8X6ZbNPc
http://v.youku.com/v_show/id_XNTkwMTI2MTg4.html

Chuangwei PCB depanelizer machine

From 2004 we started to development,manufacture,sale,service for PCB depanelizer machine, until now,we
have produced different kind PCB depanelizer machine type for  manual,motor-driven,pneumatic-driven,mold and
die punching,milling cutter router etc.
You can depend on your company's condition and choose the most suitable one.
Also We can manufacture PCB depanelizer machine base your actual requires.
PCB depanelizer machine mainly applies to depanel various shape,length and thickness Printed Circuit Board
(PCB) which include Rigid PCB,Flexible PCB(FPC) and Rigid-flex PCB etc.For example electronic and digital
products FR4 PCB,FR6 PCB ,Aluminium PCB, Copper PCB, LED strips,LED tubes PCB,Solar energy PCB and
different FPC etc.
Any interest please contact us freely.
