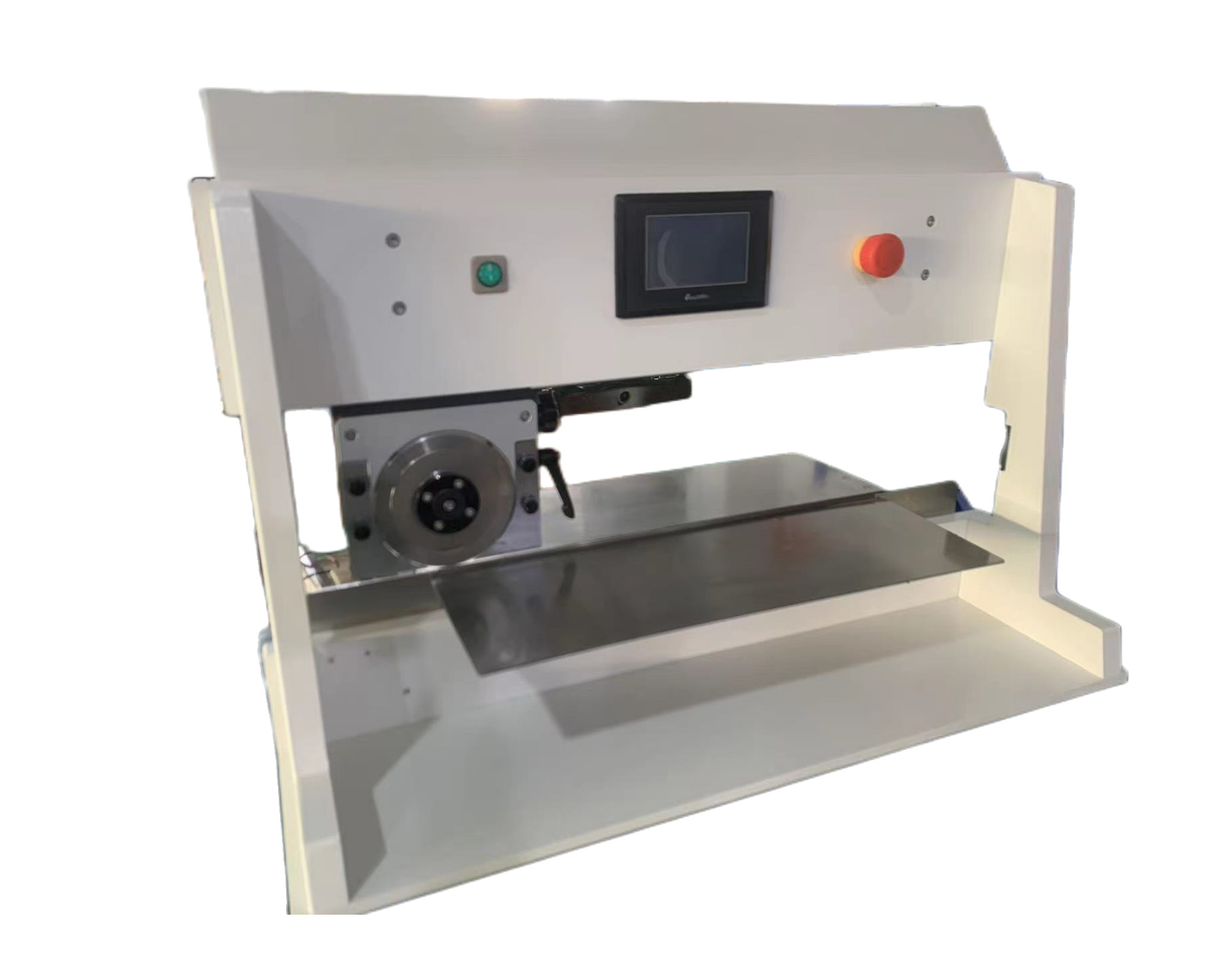

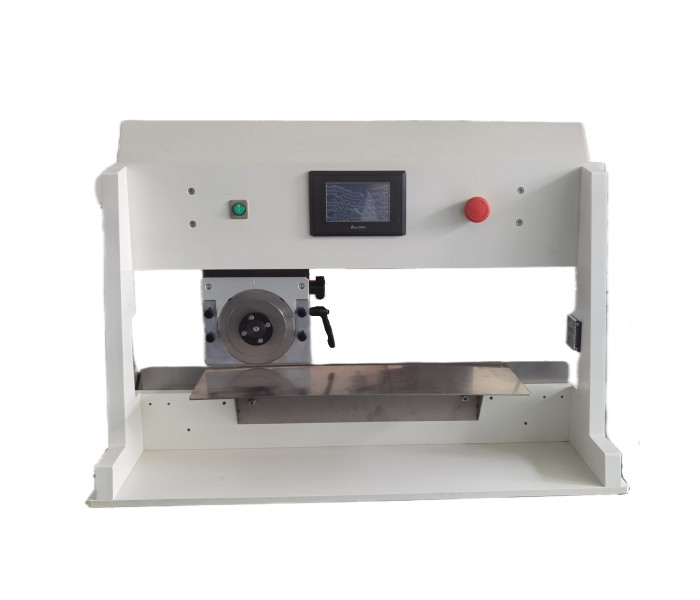

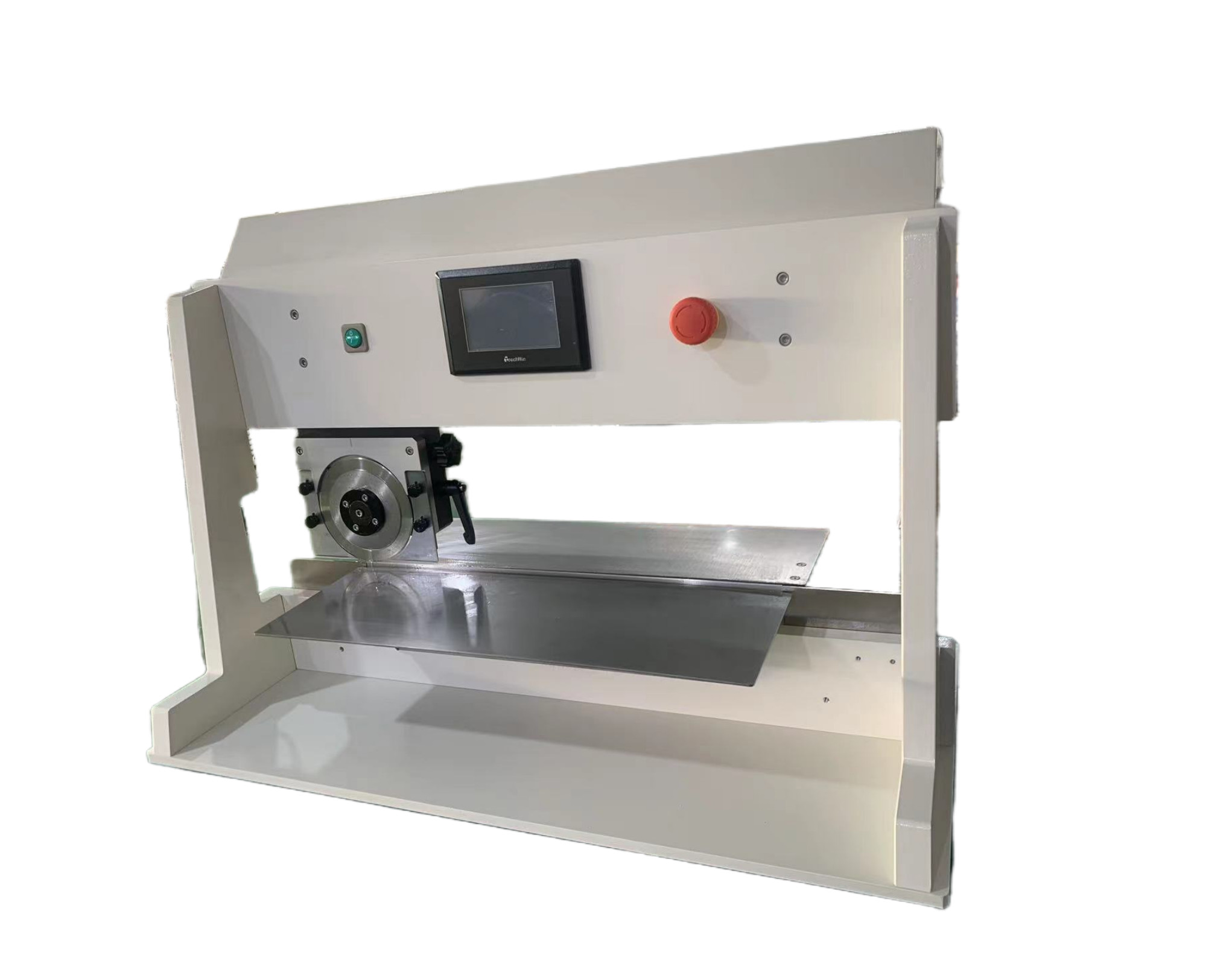

Automatic PCB depaneling Separator Machine LCD Program Control
PCB cutting machine
1.Operator foolproof
2.Infrared protection
3.Calibration Blade Set
4.LCD program Control
Specification:
|
Model |
CWV-1A460 |
|
PCB Cutting Length (mm) |
410 |
|
Cutting Speed (mm/s) |
100/200/300/500 |
|
Cutting Thickness (mm) |
0.6~3.5 |
|
Power Supply (V) |
110/220 |
|
Size (mm) |
770*510*450 |
|
Weight (Kg) |
55 |
|
Blade Hardness (HB) |
540~567 |
|
Blade Hardness (HRC) |
60~63 |
|
Blade working life for metal (Year) |
0.5 |
|
Blade working life for PCB (Year) |
1 |
|
Guarantee (Year) |
1 |
|
Delivery (Day) |
5 |
|
Min. Order (Set) |
1 |
|
Ability (Set) |
1000 |
Detailed Product Description:
1. For electronics, cell phones, computers, PCB, FPC (flexible printed circuit board),LED.
2. Mold make of SKH-11 Steel, Blade is SKH-9(From Japan), rigorous Job!!!! Dedicated
to high strength cutting, and excellent toughness, able to cut metal board !!!!!!
Technical characteristics:
1. Structural precision, the load evenly, to eliminate internal stress
2. Safe, easy to operate
3. For electronics, cell phones, computers, PCB, FPC (flexible printed circuit board)
Feature:
1.Minimize the shearing stress to avoid micro-cracks of the solder joints.
2.Guiding device of the "V-CUT" of the PCB.
3.Ball bearing slideways for easy setting of the PCB edge guides.
4.Ball bearing slideways for easy setting of the height of the tabletop.
5.Easy operating modes: Manual by handwheel, semi-automatic by pressing the start button or fully-automatic by continuous running.
6.Cutters can be re-grinded
7.The shape of the cutter can be customer made
Our Advantage:
1. 13 Years experience on manufacturing and selling
2. Engineers available to service machinery oversea
3. One year warranty for the machines except accessories
4. Effective customer service
