SMT PCB Separate V-groove Cutting Equipment For PCB Assebling Line
1.The price is very economical
2.Easy maintanance and operation
3.Low bending stress,no vibration

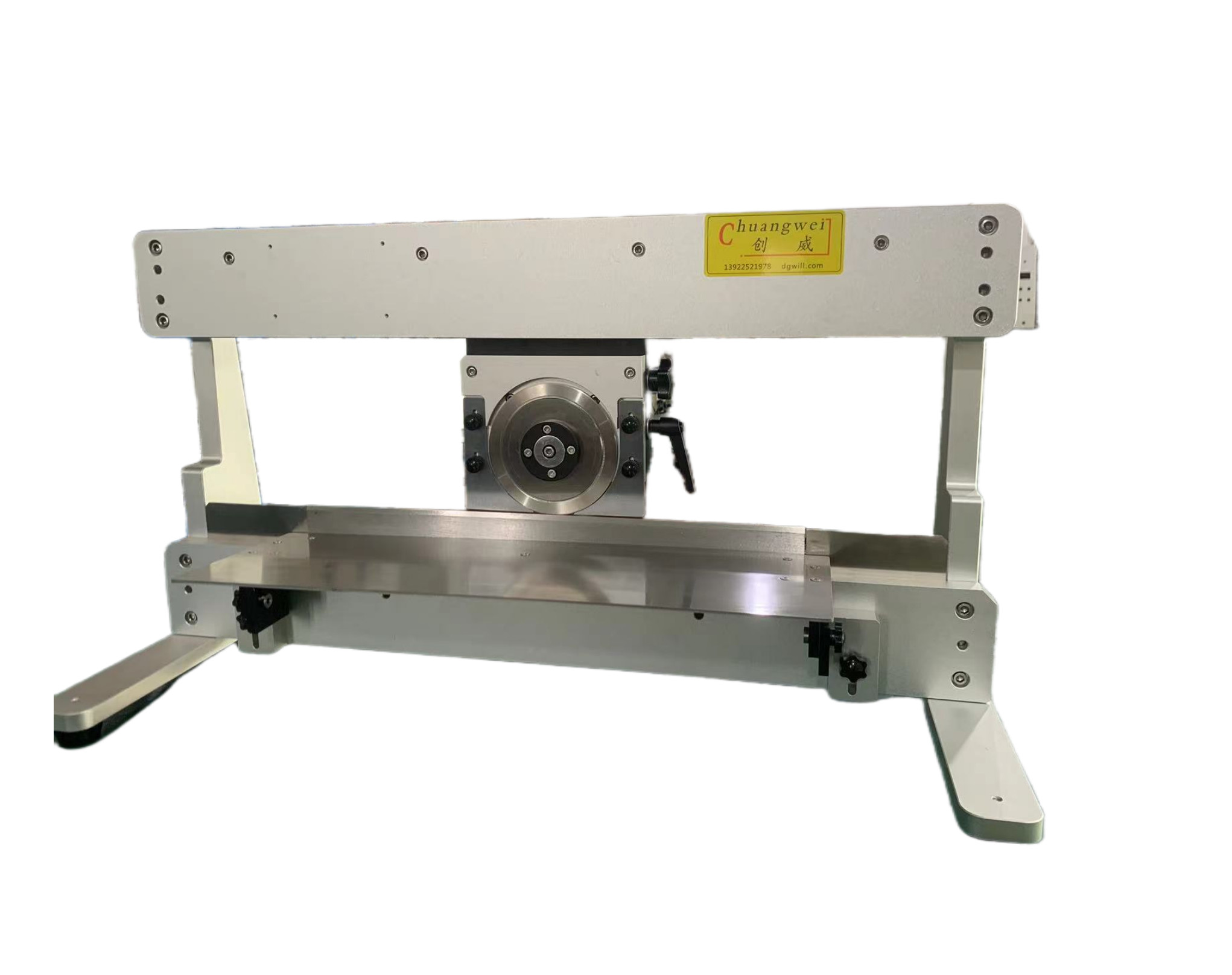

[ Chuangwei Manual V-CUT PCB singulation machine specifications: ]
| Model | CWV-1M460 |
| Max. PCB singulation length | 460mm |
| PCB singulation Thickness | 0.6-3.5mm |
| PCB singulation speed control | by hand |
| PCB singulation machine size | 787x400x436mm |
| PCB singulation machine weight | 30Kg |
| Model | CWV-1M720 |
| Max. PCB singulation length | 720mm |
| PCB singulation thickness | 0.6-3.5mm |
| PCB singulation speed control | by hand |
| PCB singulation machine size | 1027x400x436mm |
| PCB singulation machine weight | 45kg |

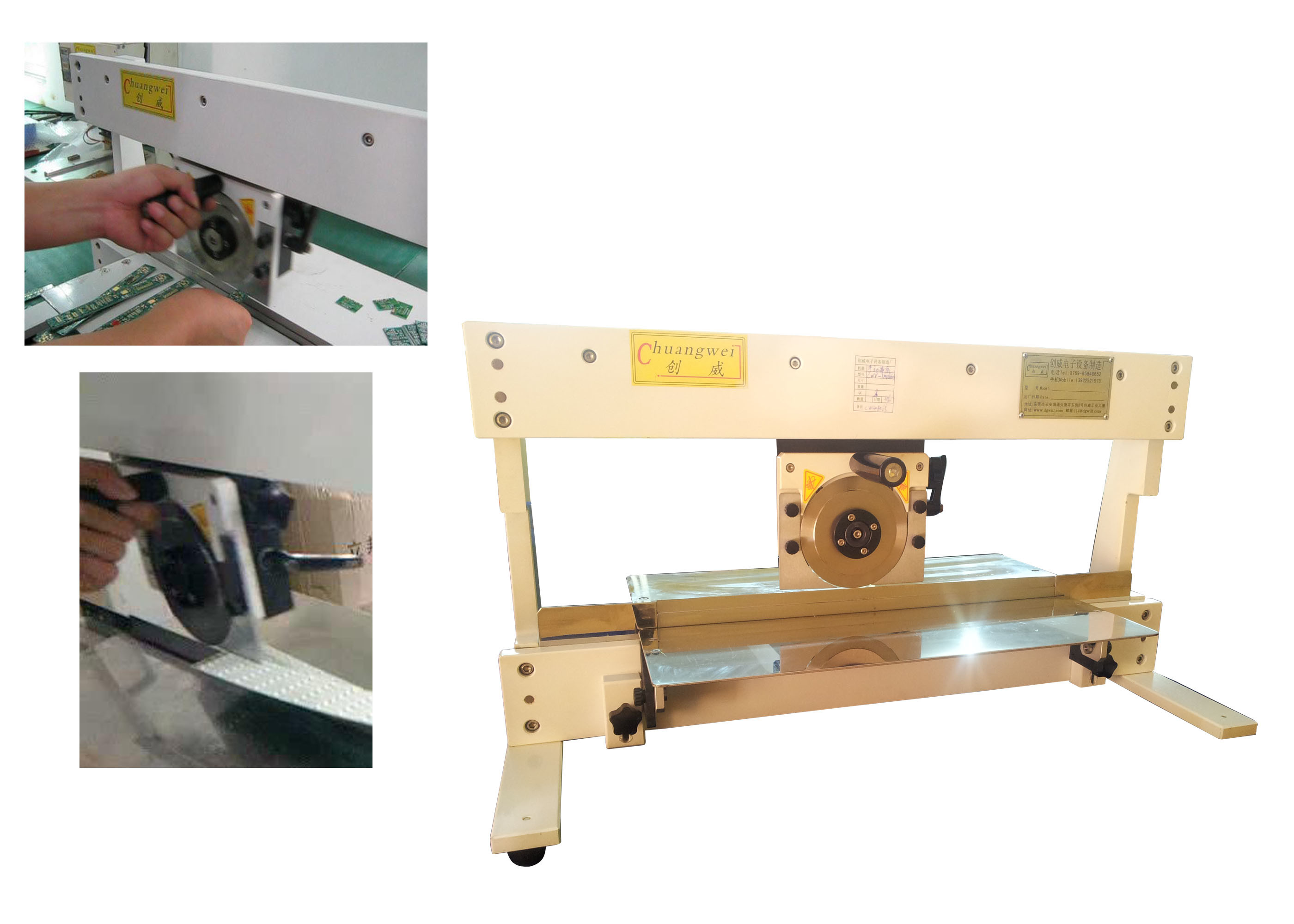

[ Chuangwei Manual V-CUT PCB singulation machine Features: ]

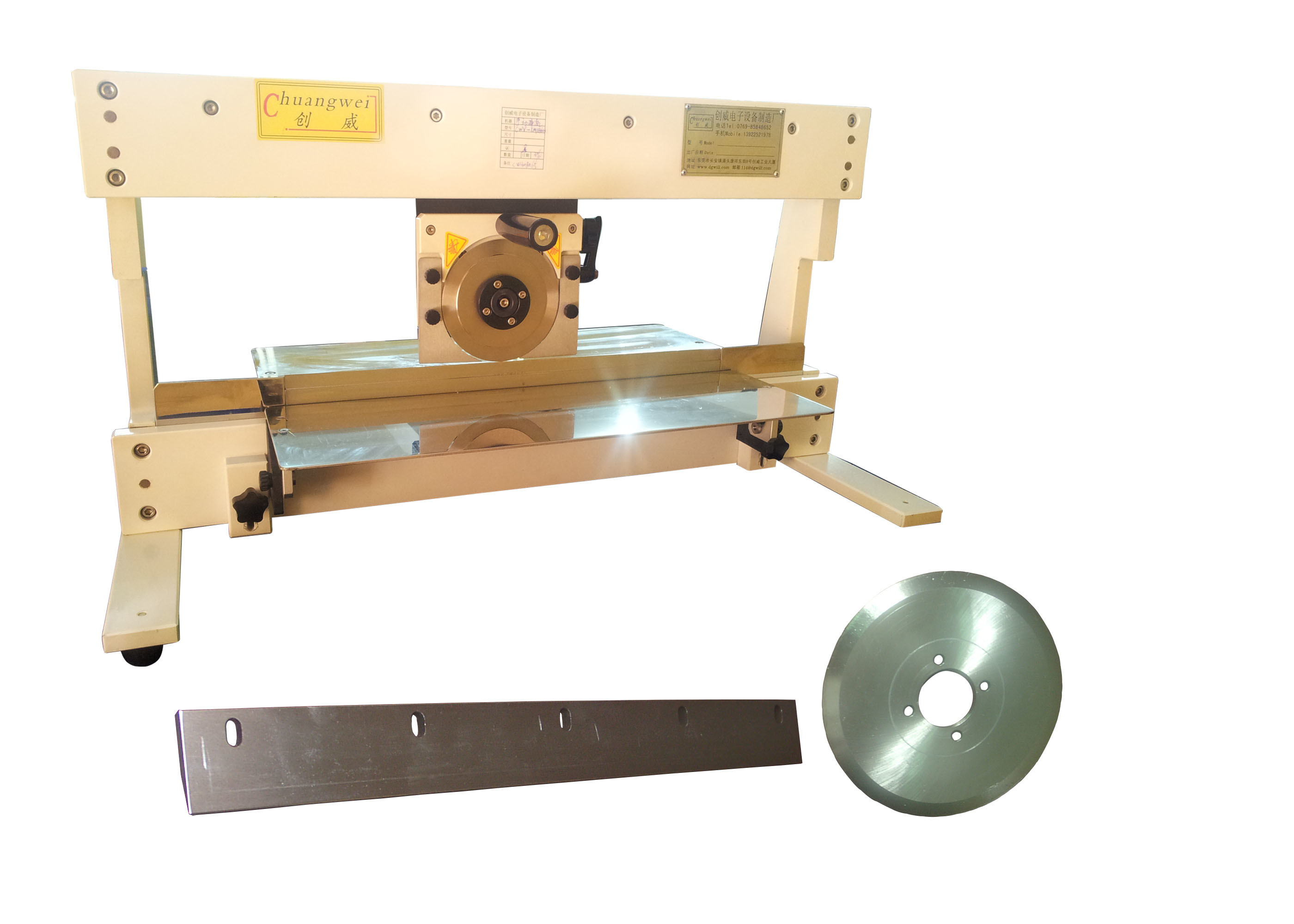

1.Round knife, manually cutting against lower linear knife, for reduced stress
2.Separate boards with components 1mm from the score line and as thin as .030"
3.Heavy frame for stability and precision linear bearing ensures proper blade alignment for many years
4.Separate board with components overlapping bottom score line by modifying the linear knife
5.Wide table on either side of the linear knife measures 6.25" x 20"
6.Table can be raised or lowered, and angeled on one or both sides
7.Easy to set the round knife for different thickness boards; positive locking mechanism
8.Flat on one side of knives allows for separation of boards with components along one side of score line
9.Sliding mechanical stops for setting the cut length, up to 18" max. Optional model separates panels to 24" max
10.Guides in front of the moveable knife for operator safety

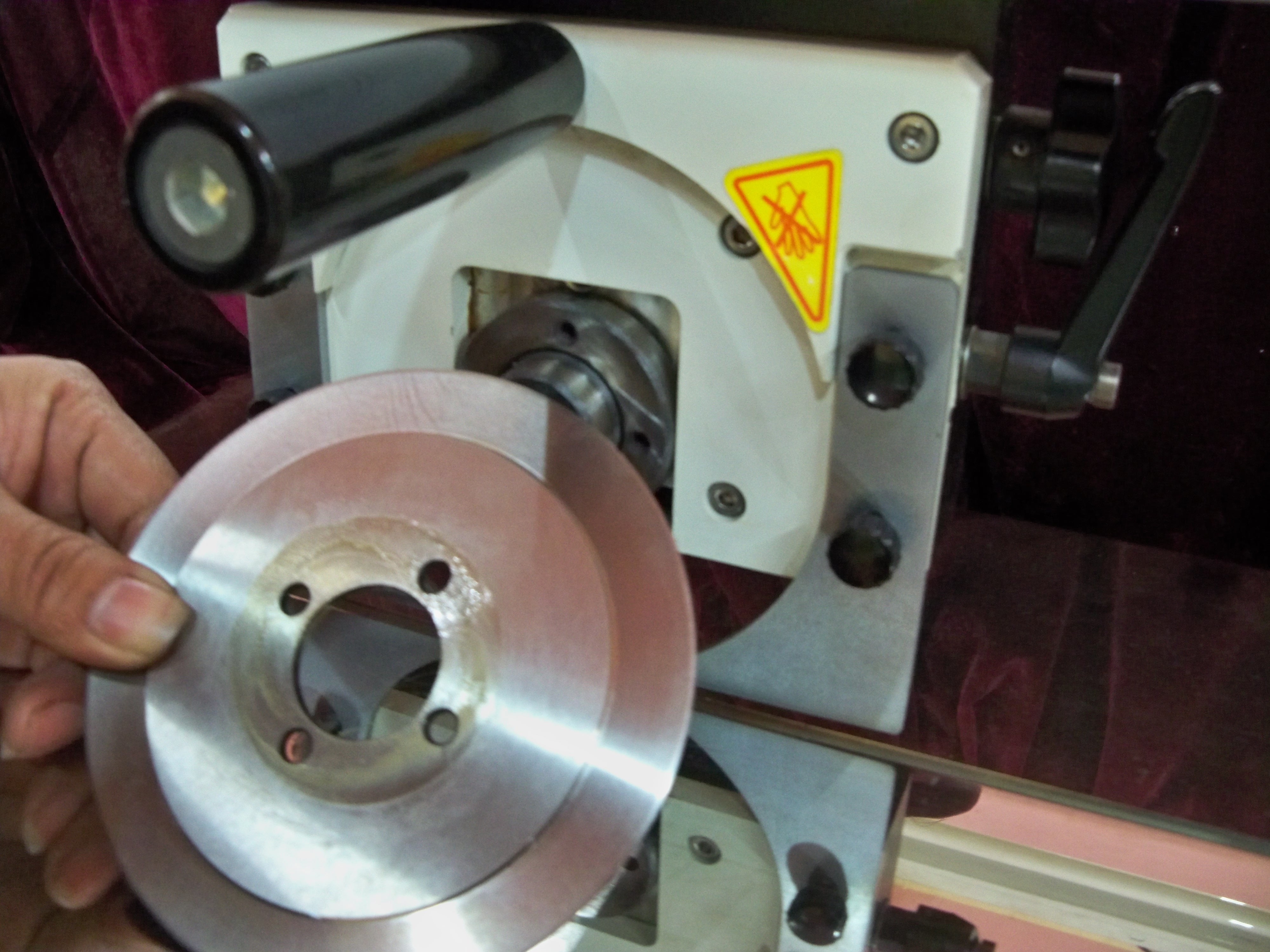

Replacement for upper blades:
1.Place the Allen Key in the screw & Loosen 4 screws
2.Remove the blade and replace a new one
