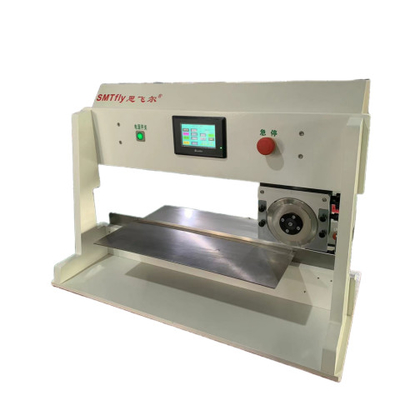

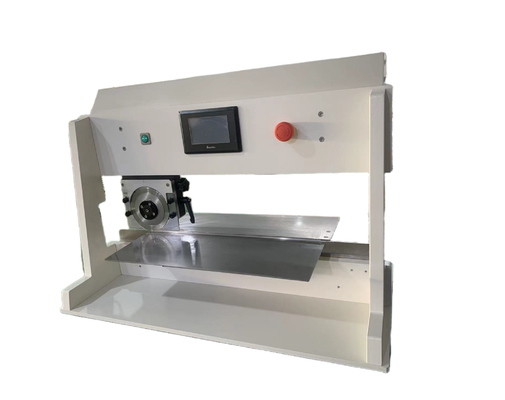

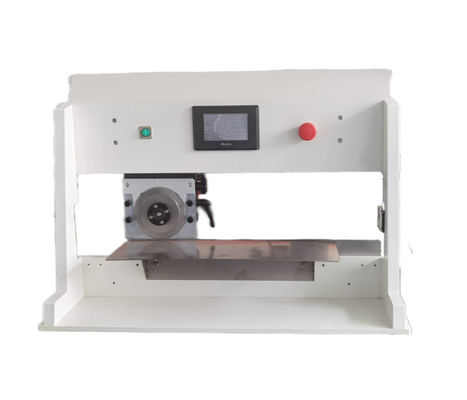

PCB Separator For Automotive Electronics Industry With Two High Speed Steel Blades
The most professional PCB singulation machine manufacturers in China.
V-CUT PCB singulation machine:
1. Automatic blade moving singulating type and singulate both small and large PCBs fast and economically;
2. For various kinds substrate PCB with pre-scored V groove;
3. Safety use,easy operation and easy maintanance;
4. Low bending stress,no vibration.
V-CUT PCB singulation machine specifications:
| Model | CWV-1A460 |
| Max. PCB singulation length | 460 mm(on request custom made) |
| PCB singulation thickness | 0.6-3.5 mm |
| PCB singulation feed rate | 100,200,300,500 mm/sec |
| Blade motion | upper circular blade moving automatically |
| Blade motive power operating mode | motor-driven |
| Power supply | 110/220v |
| PCB singulation machine size | 770*510*450mm |
| PCB singulation machine weight | 55kg |
V-CUT PCB singulation machine features:
1. Firm machine structure be designed to prevent electronic circuit, solder point, and solder cutting area of PCB from damage by unsuitable force.
2. Effectively reduce stress and prevent solder point chap from PCB cutting.
3. PCB cutting speed can be adjusted by the rotary knob
4. PCB cutting stroke can be set free and setting value can be showed in LCD
5. Clearance between circular and linear blades are adjusted to fit different V groove depth and compensates for blade wearout
6. Optional PCB conveyor belt to remove finished PCB cut.
Why choose us
|
1. Engineers available to service machinery oversea. Engineers are available to be sent to freign countries to do machinery training and offer technical support
|
|
2. Mature technique & forerunner to process makes high quality machinery. As largest manufactory in South China, we have 12 years experience on PCB separator machines and soldering machines. pcb router Our R&D team continuously upgrade the existing machines to meet the market development trend.
|
|
3. One year warranty for the machines except accessories. Robust frame construction and Japanese steel blades obtained good appraise and recognized by and oversea clients. We offer parts for replacement under warranty free of charge, clients only need to bear freight charge
|
|
4. Effective customer service. All of us together are stronger and wiser than any one of us individually. To succeed, we must assume responsibility, cooperate with fellow associates and withdepartments, effectively comminicate with one another, foster enthusiam and participate in decision-making. To be seay reachable by customers and provide prompt replies to solve their problems and create value for customers
|
|
Our mission Ongoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success
|
|
Our Vision: Ongoing PCB industry PCB separator technological innovation, to create greater value, allowing customers to success |
